Canadian Solar EP Cube Full Kits
Designed for Simple Installation and Flexible System Scaling
The EP Cube is a sleek, all-in-one residential energy storage solution featuring a built-in hybrid inverter and modular LFP battery design.
Each full kit includes the 7.6 kW EP Cube inverter plus 2 to 6 stackable battery modules, allowing installers to size systems between 6.6kWh and 19.9kWh based on homeowner needs.
Designed for both new PV installs and retrofit applications, EP Cube supports grid-tie, backup, and self-consumption modes, with seamless auto transfer to backup power during outages.
System Features
Hybrid Inverter Built In
7.6 kW continuous output, 240V split-phase
Flexible PV Input
2 MPPTs, 16A per input, 600V max DC input
AC & DC Coupling
Compatible with existing PV systems
UPS-Level Backup
<10ms transfer time during outages
Scalable Storage

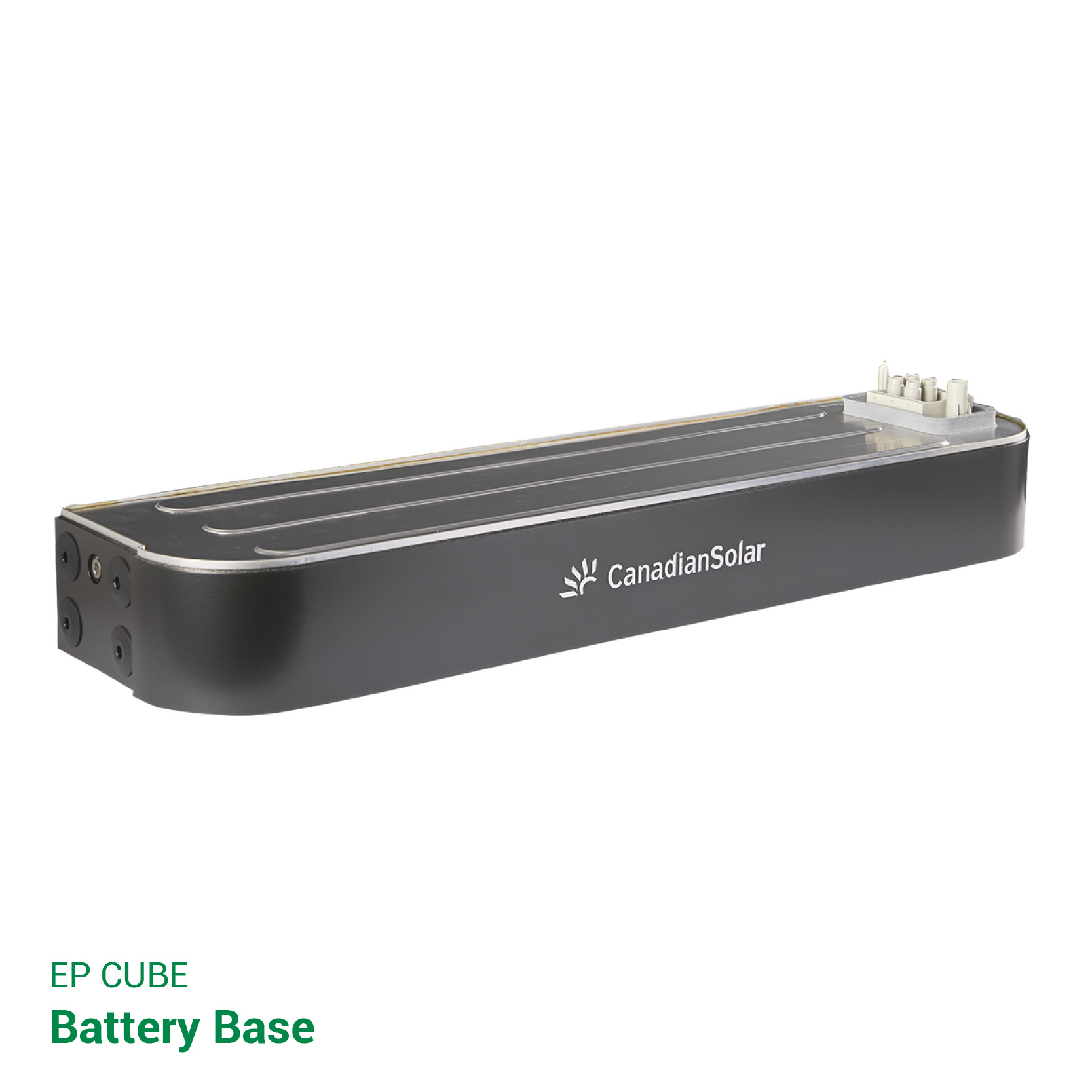

2–6 LFP modules per system (3.3 kWh each)
Plug-and-Play Design
No external wiring between modules
Outdoor-Rated
NEMA 4X enclosure, -10°C to 50°C operating range
Smart Monitoring
App and web portal for real-time performance
Installer Benefits
Plug-and-Play Assembly
No External PCS Needed
Time-Saving Commissioning
Lightweight, Modular Form
Canadian CSA Certified
Available Models
Model | Usable Capacity | Battery Modules | Wall Mount | Estimated Weight | R10KLNA |
|---|---|---|---|---|---|
EP Cube 7.6 kW Full Kit 6.6kWh | 6.6 kWh | 2 | Included | ~85 kg ~187 lbs | 600 × 1220 × 235 mm 23.6 × 48.0 × 9.3 in |
EP Cube 7.6 kW Full Kit 9.9kWh | 9.9 kWh | 3 | Included | ~117 kg ~257 lbs | 600 × 1435 × 235 mm 23.6 × 56.5 × 9.3 in |
EP Cube 7.6 kW Full Kit 13.3kWh | 13.3 kWh | 4 | Included | ~149 kg ~327 lbs | 600 × 1650 × 235 mm 23.6 × 65.0 × 9.3 in |
EP Cube 7.6 kW Full Kit 16.6kWh | 16.6 kWh | 6 | Included | ~181 kg ~398 lbs | 600 × 1865 × 235 mm 23.6 × 73.4 × 9.3 in |
EP Cube 7.6 kW Full Kit 19.9kWh | 19.9 kWh | 6 | Included | ~213 kg ~468 lbs | 600 × 2080 × 235 mm 23.6 × 81.9 × 9.3 in |
